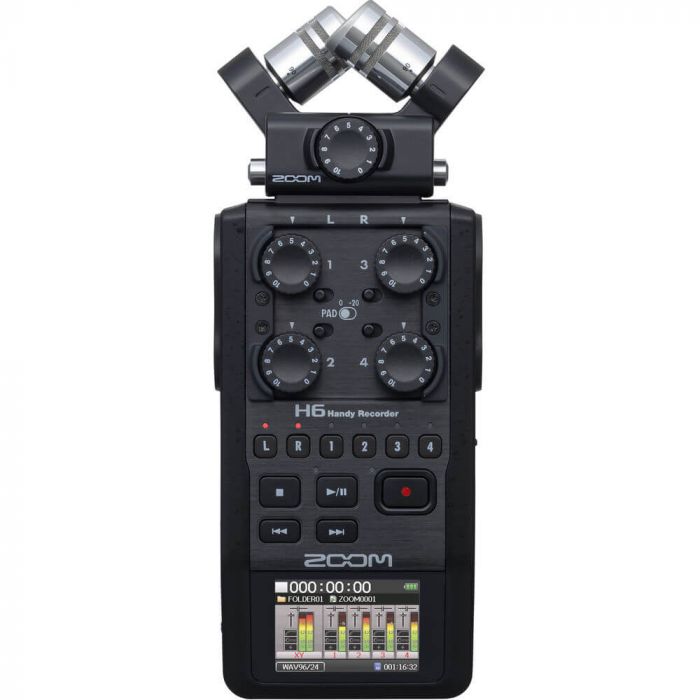

Zoom H6 Protable 6-Track Audio Recorder

Ideal for bands, multi-instrumentalists, and podcasters, the Zoom H6 portable handheld recorder lets you quickly record up to six simultaneous input signals regardless of your audio experience. With two swappable stereo microphone capsules, six versatile mic/line inputs, and up to 6-track recording, the H6 is both user-friendly and easily expandable.

Portable Recorder

• Number of Tracks WAV: 6
  MP3: 2
• Max Sample Rate/Resolution 96 kHz / 24-Bit
• Microphone Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration
  Interchangeable Condenser Stereo Pair, Mid/Side Configuration
• Built-In Speaker Yes, 400 mW Mono
• Display 2" / 5.08 cm Color LCD (Backlit)
• Memory Card Support SD (16 MB to 2 GB)
  SDHC (4 to 32 GB)
  SDXC (64 to 128 GB)
• Internal Storage None

Recording

• Audio File Formats BWF, MP3, WAV
  Sample Rates WAV: 44.1 / 48 / 96 kHz
  MP3: 44.1 kHz
• Bit Depth 16 / 24-Bit
• Bit Rates 48 to 320 kb/s
• Signal Processing Compressor, Limiter, Low-Cut Filter, Pitch Control
• Timecode No
• Recording Time WAV 44.1 kHz/16-Bit:1 Hr 34 Mins per GB (Stereo)
  MP3 128 kb/s:17 Hrs 21.5 Mins per GB (Stereo)

Connectivity

• Analog I/O 4 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line/Mic Input
  1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
  1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
  1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
• Digital I/O None
• Phantom Power +12 / 24 / 48 V (Selectable on Individual Inputs)
• Plug-In Power Yes, 2.5 V
• Host Connection 1 x Mini-USB (USB 2.0)

Performance

• Gain Range Mid-Side Mic Capsule: Up to +42.5 dB
  X/Y Mic Capsule: Up to +46.5 dB
  1/8" Inputs: Up to +46.5 dB
  Mic/Line Inputs: Up to +55.5 dB
• Max Input Level Inputs: +22 dBu (Pad On)
• Headphone Output Power 20 mW per Channel into 32 Ohms
• Impedance 1/8" / 3.5 mm Inputs:2 Kilohms
  Mic/Line Inputs: 1.8 Kilohms
• EIN ≤-120 dBu
• Microphone Sensitivity -41 dB/Pa (X/Y)
  -37 dB/Pa (Mid/Side-Unidirectional)
  -39 dB/Pa (Mid/Side-Bidirectional)
• Microphone Max SPL 136 dB SPL (X/Y)
  120 dB SPL (Shotgun-Unidirectional)
  122 dB SPL (Shotgun-Bidirectional)

Power

• Power Options Batteries, USB Bus Power, AC/DC Power Adapter
• Battery Type 4 x AA (Included)
• Approximate Battery Life WAV 44.1 kHz/16-Bit: 21 Hours (Alkaline, 2 Channels)
  WAV 96 kHz/24-Bit: 9.75 Hours (Alkaline, All Channels)
• AC/DC Power Adapter 5 VDC at 1 A (Not Included)

Physical

• Mounting Options 1/4"-20 Female
• Dimensions 3.1 x 1.9 x 6" / 77.8 x 47.8 x 152.8 mm (Recorder)
• 3.1 x 1.8 x 2.4" / 78.9 x 45.2 x 60.2 mm (X/Y Mic)
• 2.3 x 1.7 x 2.7" / 58 x 42.1 x 67.6 mm (Shotgun Mic)
• Weight 9.9 oz / 280 g (Recorder)
• 4.6 oz / 130 g (X/Y Mic)
• 3 oz / 85 g (Shotgun Mic)
