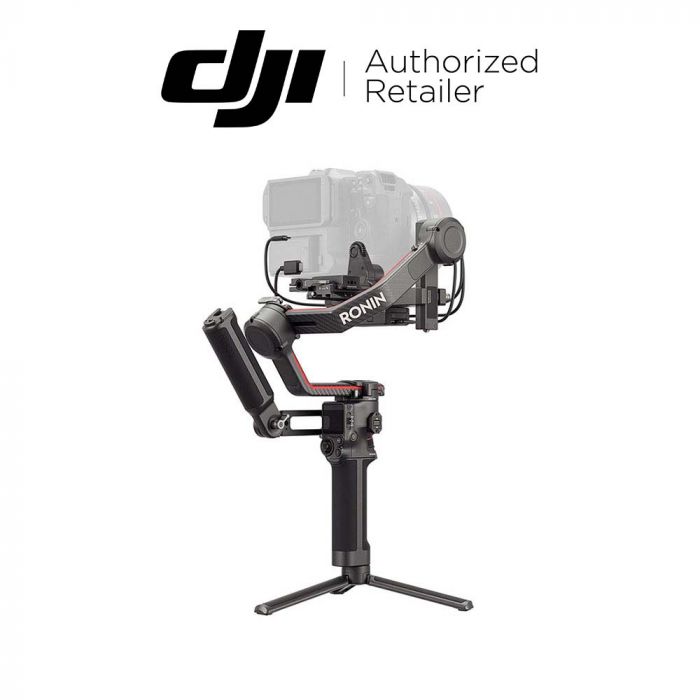

DJI RS 3 Pro Specs
|
| Peripheral |
Accessory Port |
RSA/NATO Ports<br> |
| |
|
1/4"-20 Mounting Hole<br> |
| |
|
Cold Shoe<br> |
| |
|
Video Transmission/Focus Motor Port (USB-C)<br> |
| |
|
RSS Camera Control Port (USB-C)<br> |
| |
|
Focus Motor Port (USB-C) |
| Peripheral |
Battery |
Model: BG30-1950 mAh-15.4V<br> |
| |
|
Type: LiPo 4S<br> |
| |
|
Capacity: 1950 mAh<br> |
| |
|
Energy: 30 Wh<br> |
| |
|
Max. Runtime: 12 hours<sup>[1]</sup><br> |
| |
|
Charging Time: Approx. 1.5 hours (using 24W charger; it is recommended to use QC 2.0 or PD protocol chargers)<br> |
| |
|
Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Peripheral |
Connections |
Bluetooth 5.0<br> |
| |
|
Charging Port (USB-C) |
| Peripheral |
Ronin App Requirements |
iOS 11.0 or above<br> |
| |
|
Android 7.0 or above |
| Peripheral |
Languages Supported by the Touchscreen |
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Working Performance |
Tested Payload |
4.5 kg (10 lbs) |
| Working Performance |
Maximum Controlled Rotation Speed |
Pan: 360°/s<br> |
| |
|
Tilt: 360°/s<br> |
| |
|
Roll: 360°/s |
| Working Performance |
Mechanical Range |
Pan axis: 360° continuous rotation<br> |
| |
|
Roll axis: -95° to +240°<br> |
| |
|
Tilt axis: -112° to +214° |
| Mechanical & Electrical Characteristics |
Operating Frequency |
2.400-2.484 GHz |
| Mechanical & Electrical Properties |
Bluetooth Transmitter Power |
<8 dBm |
| Mechanical & Electrical Properties |
Operating Temperature |
-20° to 45° C (-4° to 113° F) |
| Mechanical & Electrical Properties |
Weight |
Gimbal: Approx. 1,143 g (2.51 lbs)<br> |
| |
|
Grip: Approx. 265 g (0.58 lbs)<br> |
| |
|
Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)<br> |
| |
|
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs) |
| Mechanical & Electrical Properties |
Gimbal Dimensions |
Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)<br> |
| |
|
Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |
| DJI Ronin Image Transmitter |
Connections |
Power/Communication Port (USB-C)<br> |
| |
|
HDMI Port (Mini HDMI)<br> |
| |
|
RSS Camera Control Port (USB-C) |
| DJI Ronin Image Transmitter |
Expansion Port |
Cold Shoe |
| DJI Ronin Image Transmitter |
Operating Frequency |
2.400-2.484 GHz<br> |
| |
|
5.725-5.850 GHz |
| DJI Ronin Image Transmitter |
Weight |
126 g (0.27 lbs) |
| DJI Ronin Image Transmitter |
Dimensions |
Length: 82×63×24 mm (L×W×H) |
| DJI Ronin Image Transmitter |
Transmitter Power (EIRP) |
2.400-2.484 GHz: <br> |
| |
|
<25 dBm (FCC)<br> |
| |
|
<20 dBm (CE/SRRC/MIC)<br><br> |
| |
|
5.725-5.850 GHz: <br> |
| |
|
<25 dBm (FCC/SRRC)<br> |
| |
|
<14 dBm (CE) |
| DJI Ronin Image Transmitter |
Battery |
Capacity: 2970 mAh<br> |
| |
|
Compatible Charger: 5 V/2 A<br> |
| |
|
Charging Time: Approx. 2.5 hours<br> |
| |
|
Operating Time: Approx. 3.5 hours |
| DJI Ronin Image Transmitter |
Transmission Range |
200 m (SRRC/FCC)<sup>[2]</sup><br> |
| |
|
100 m (CE)<sup>[2]</sup> |
| DJI Ronin Image Transmitter |
Latency |
60 ms |
| DJI Ronin Image Transmitter |
Operating Current/Voltage |
900 mA/3.7 V |
| DJI Ronin Image Transmitter |
Operating Temperature |
0° to 45° C (32° to 113° F) |
| DJI LiDAR Range Finder (RS) |
Accessory Port |
Cold Shoe<br> |
| |
|
1/4"-20 Mounting Hole<br> |
| |
|
USB-C Port<br> |
| |
|
USB-C Power/CVBS/CAN Data Port |
| DJI LiDAR Range Finder (RS) |
Image Sensor |
Resolution: 448×298 on the RS touchscreen<br> |
| |
|
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)<br> |
| |
|
Frame Rate: 30fps<br> |
| |
|
Focal Length: 30mm Equivalent |
| DJI LiDAR Range Finder (RS) |
ToF Sensor |
Resolution: 240×180<br> |
| |
|
Sensing Range: 0.5 to 14 m<sup>[3]</sup><br> |
| |
|
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)<br> |
| |
|
Frequency: 25 Hz<br> |
| |
|
Focal Length: 30mm equivalent<br> |
| |
|
Distance Error: 1% |
| DJI LiDAR Range Finder (RS) |
Machine Learning |
Frequency: 30 Hz<br> |
| |
|
Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow<br> |
| |
|
Smart Object Identification: Human face, head, and body |
| DJI LiDAR Range Finder (RS) |
Electrical Properties |
Power Consumption: 6.8 W<br> |
| |
|
Input: 7 to 16 V |
| DJI LiDAR Range Finder (RS) |
Operating Temperature |
-20° to 45° C (-4° to 113° F) |
| DJI LiDAR Range Finder (RS) |
Mechanical Properties |
Dimensions: 66×57×24 mm (L×W×H)<br> |
| |
|
Weight: Approx. 130 g (0.28 lbs)<br> |
| |
|
Mounting Plate Height: 30 mm |
| DJI LiDAR Range Finder (RS) |
Lenses that Do Not Need Calibration |
DZOFILM Vespid Cyber 35 mm<br> |
| |
|
DZOFILM Vespid Cyber 50 mm<br> |
| |
|
DZOFILM Vespid Cyber 75 mm |
| Notes |
|
1. Measured with the gimbal balanced, equipment in a level and stationary state, and three axes in an active state. <br> |
| |
|
2. In open environments free of obstructions or interference. <br> |
| |
|
3. In environments with a brightness level of 80,000 lux or below. |
