จุดเด่น/สเปค DJI AP100 Parachute
- รองรับข้อกำหนดการทำเครื่องหมายคลาส EASA C5/C6 และ UK CAA UK5/UK6 สำหรับการปฏิบัติงาน STS-01 และ STS-02
- การกางร่มอัตโนมัติภายใน 600 มิลลิวินาที พร้อมตัดมอเตอร์ก่อนการดีดร่มชูชีพ
- ความเร็วลงจอดที่เสถียรต่ำกว่า 5 ม./วินาที เมื่อกางที่ ≥ 30 ม. AGL
- แหล่งจ่ายไฟอิสระ สำรองไฟได้นานถึง 1 ชั่วโมงผ่านตัวเก็บประจุคู่
- การออกแบบติดตั้งด้านหลัง รองรับกับกระเป๋าขนส่ง DJI Matrice 400
หากมีข้อสงสัยหรือต้องการสอบถามข้อมูลเพิ่มเติมเกี่ยวกับสินค้า สามารถติดต่อเราได้ผ่านช่องทางแชท ได้ที่ m.me/BIGCAMERACLUB
ราคา
฿0 บาท
M400 Drone Parachute
DJI AP100 PARACHUTE
For the Priceless Below
DJI AP100 Parachute for Matrice 400 [1] enables C5/UK5 and C6/UK6 operations [2]. It features independent power and full-link redundancy, supporting both manual and automatic deployment. With a response time under 600 ms [3] and a descent rate below 5 m/s [4], it helps protect your platform, payloads, and the ground below**.
Meet the DJI AP100 Parachute: A Safety System for DJI Matrice 400 Operations
EASA C5/C6 | CAA UK5/UK6
When paired with DJI AP100 Parachute, Matrice 400 [1] meets the European Union Aviation Safety Agency's (EASA) C5/C6 and the UK Civil Aviation Authority's (CAA) UK5/UK6 operational safety requirements [2]. It facilitates compliance for Standard Scenarios, including flights over populated urban areas (STS-01) and Beyond Visual Line of Sight (BVLOS) operations (STS-02).
Continuous Self-Diagnostics
From the moment Matrice 400 powers on and throughout the entire flight, the parachute continuously monitors the status of the gas generator and communication links. If an anomaly occurs, real-time alerts are displayed via the Health Management System (HMS) in the DJI Pilot 2, ensuring safe operation.
Intelligent Algorithms, Redundancy Validation
Equipped with an independent flight control system and sensors like IMU, the parachute functions as a self-contained safety module. Intelligent algorithms continuously cross-validate data between the drone and the parachute in real time, significantly reducing the risk of accidental deployment.
Independent Power
Built-in dual capacitors provide up to 1 hour of independent backup power [6]. This helps ensure uninterrupted flight attitude monitoring and automatic deployment, without relying on main aircraft power or an active E-Port connection.
Instant Motor Cut-Off
When triggered, an independent Flight Termination System (FTS) cuts motor power within 600 ms [3], stopping the rotors before parachute ejection to prevent entanglement.
Audio and Visual Alarms
After deployment, the system continuously emits loud alarms and high-intensity flashing lights for approximately 1 hour [6]. This warns people on the ground to clear the area and helps operators quickly locate and recover the equipment.
Automatic Deployment Response Time ≤ 600 ms [3] | Stabilized Descent Speed ≤ 5 m/s [4] at Deployment Altitude ≥ 30 m
Automatic Deployment
Automatically deploys when it detects fight attitude or speed anomalies in the EU, UK, and other supported countries or regions, it also triggers when the drone breaches a Geocaging boundary set in the DJI Pilot 2.
Manual Deployment
Trigger deployment with the on-screen sider in the DII Pilot 2. In the EU, UK, and other supported countries or regions,remote deployment is also available through DJI Flighttub 2s Flight Termination System (FTS) page " using Aircralt SN and a verification code (DJI Cellular Dongle 2 "m and required).

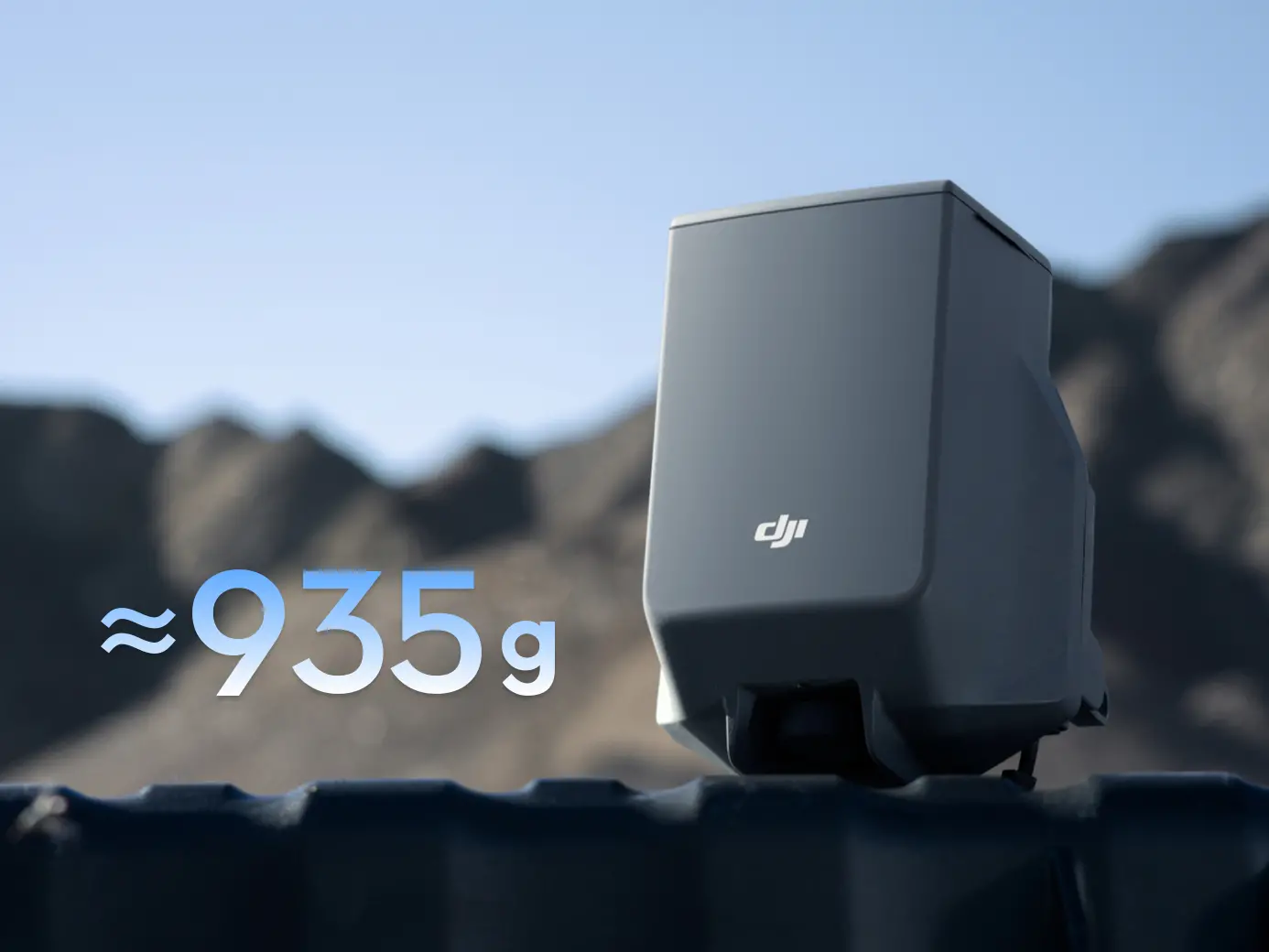

Lightweight Design
Weighing approx. 935 g, the system preserves Matrice 400's 15.8kg maximum takeoff weight, with a minimal flight time impact of about 6 minutes.

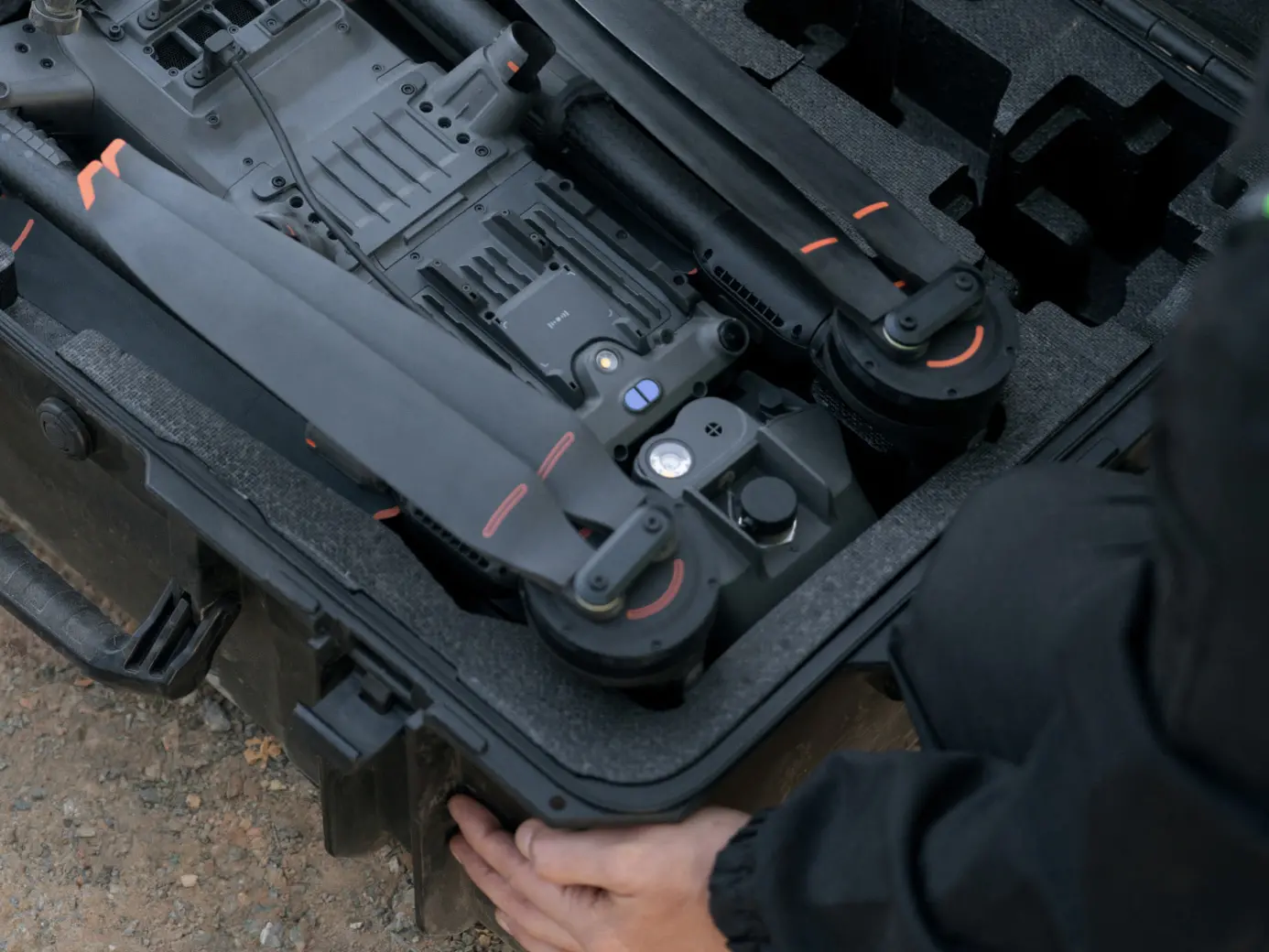

Easy Storage
The rear-mounted design avoids interference with battery swaps or payloads. Matrice 400 fits directly into its carrying case with the parachute attached, saving setup time in the field**.
Built for Harsh Environments
Sharing Matrice 400's IP55 rating [12], the system operates reliably in challenging conditions, including heavy dust or rain. It also maintains stable performance across temperatures from -20° to 50° C (-4° to 122° F), delivering consistent results in both hot and cold conditions.
Specs
| Dimensions | 182×171×157 mm (L×W×H) (with bracket) |
| Weight | Approx. 935 g (with bracket) |
| Max Supported Takeoff Weight | 15.8 kg |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Operating Altitude | 0 to 4500 m |
| Ingress Protection Rating | IP55 |
| Stabilized Descent Speed | ≤ 5 m/s |
| Effective Deployment Altitude | ≥ 30 m |
| Automatic Deployment Response Time | ≤ 600 ms |
| Canopy Material | Nylon |
| Manual Deployment | Supports Manual Deployment via App and FTS Deployment* |
| Automatic Deployment | Supports Automatic Deployment triggered by flight anomalies* or Geocaging** |
| Color | BLACK |
|---|
